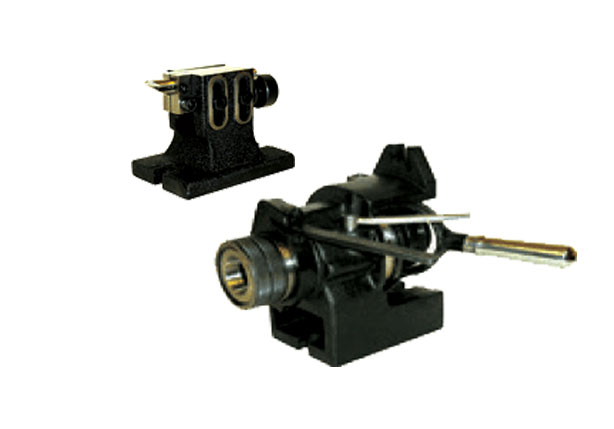

Horizontal / Vertical 5C Collet Indexing Fixture

Horizontal / Vertical 5C Collet Indexing Fixture
  MDX-LOGO

Specifications:
Horizontal Base - 4" x 8"
Vertical Base - 4" x 6"
Vertical Height - 8"
Swing - 8"
Center Height - 4"

For rapid indexing in both vertical and horizontal positions using 5-C
collets. 2-1/4" - 8 threaded spindle nose for use with lathe chucks.
Instant opening and closing of collets is accomplished by a lever
having a leverage ratio of 100 to 1. Rapid rotation of spindle nose
is accomplished through a ratchet device on the front of the spindle.
Supplied with a 24 hole index plate for 2, 3, 4, 6, 8, 12 and 24 divisions
or 15 degree spacing. Index plate is supplied with screws for
masking holes not in use.



 Model   Product Name   Price   Buy Now
 J2070001   Horizontal Vertical 5C Collet Tailstock   $140.07
 J2070000   Horizontal Vertical 5C Collet Fixture   $382.62
Displaying 1 to 2 (of 2 products) Result Pages:  1
