Double End Center Cutting

Double End Center Cutting
  hsmdx

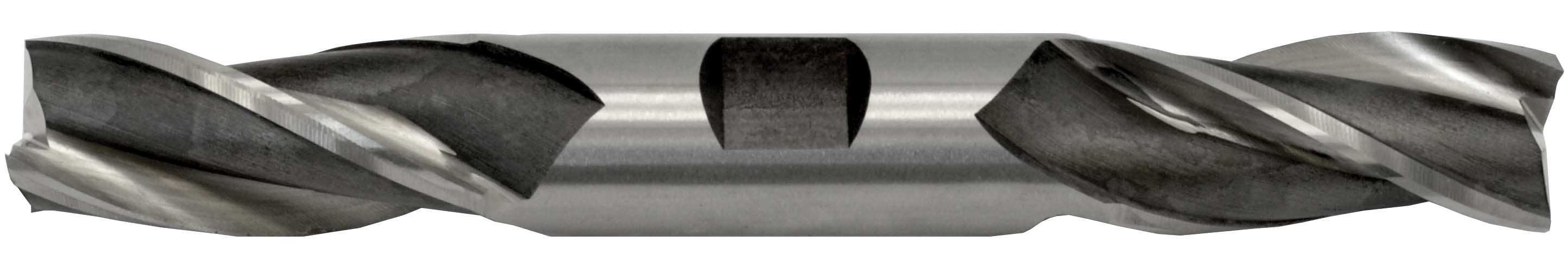

3-Flute End Mills

High Speed Steel

Three flute end mills are used for production milling of slots,
pockets, keyways, and other general purpose applications.
These end mills,have a one tooth to
center design with chip-free action which allows the machinist to
feed endwise and still maintain a high quality finish on slotting.





 Shank Diameter   Diameter Of Cut   Overall Length   Length Of Cut   Model   Product Name   Price   Buy Now
3/8 3/8 3-3/8 3/4  263 3/8   HS 3FLT D/E Centers CUT ENDMILL   $15.97
3/8 5/16 3-3/8 3/4  263 5/16   HS 3FLT D/E Centers CUT ENDMILL   $15.97
3/8 1/4 3-3/8 5/8  263 1/4   HS 3FLT D/E Centers CUT ENDMILL   $15.97
3/8 7/32 3-1/8 9/16  263 7/32   HS 3FLT D/E Centers CUT ENDMILL   $15.97
3/8 3/16 3-1/8 1/2  263 3/16   HS 3FLT D/E Centers CUT ENDMILL   $15.97
3/8 1/8 3-1/8 3/8  263 1/8   HS 3FLT D/E Centers CUT ENDMILL   $15.97
3/8 11/32 3-3/8 3/4  263 11/32   HS 3FLT D/E Centers CUT ENDMILL   $17.00
3/8 9/32 3-3/8 11/16  263 9/32   HS 3FLT D/E Centers CUT ENDMILL   $17.00
3/8 5/32 3-1/8 7/16  263 5/32   HS 3FLT D/E Centers CUT ENDMILL   $17.00
1/2 7/16 4-1/4 1  263 7/16   HS 3FLT D/E Centers CUT ENDMILL   $24.15
1/2 1/2 4-1/4 1  263 1/2   HS 3FLT D/E Centers CUT ENDMILL   $24.15
1/2 15/32 4-1/4 1  263 15/32   HS 3FLT D/E Centers CUT ENDMILL   $24.15
5/8 5/8 5 1-3/8  263 5/8   HS 3FLT D/E Centers CUT ENDMILL   $34.01
5/8 9/16 5 1-3/8  263 9/16   HS 3FLT D/E Centers CUT ENDMILL   $34.01
3/4 11/16 5-3/8 1-5/8  263 11/16   HS 3FLT D/E Centers CUT ENDMILL   $42.00
3/4 3/4 5-5/8 1-5/8  263 3/4   HS 3FLT D/E Centers CUT ENDMILL   $43.27
7/8 13/16 6-1/4 1-1/2  263 13/16   HS 3FLT D/E Centers CUT ENDMILL   $55.00
7/8 7/8 6-1/4 1-7/8  263 7/8   HS 3FLT D/E Centers CUT ENDMILL   $58.93
1 1 6-1/2 1-7/8  263 1   HS 3FLT D/E Centers CUT ENDMILL   $71.67
1 15/16 6-1/4 1-7/8  263 15/16   HS 3FLT D/E Centers CUT ENDMILL   $71.67
Displaying 1 to 20 (of 20 products) Result Pages:  1
